COLOURS FOR RAILINGS, HANDRAILS AND POSTS

COLOURS FOR 6 MM TEMPERED GLASS

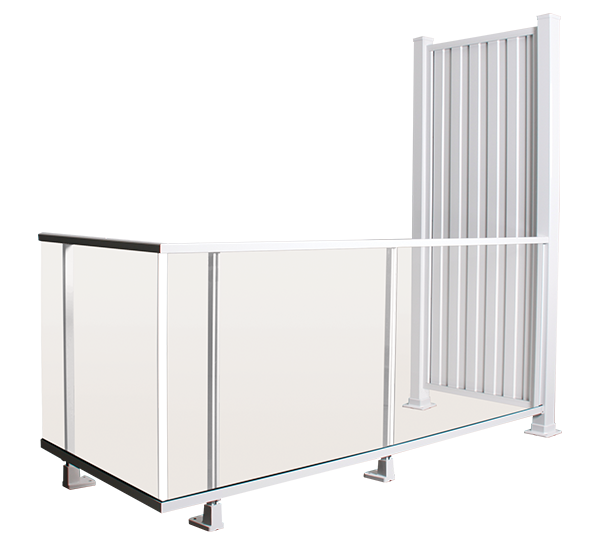

PANORAMA RAILING

FEATURES

This railing is made entirely of aluminium using aluminium extrusions and aluminium castings with a baked paint finish. All screws and fasteners are in stainless steel. The standard glass is 6 mm tempered.

CERTIFICATION OF RAILING
Handrails
Balusters
SELECT POSTS
SPECIFICATIONS
Regular Design
  • Railing 36˝ (900 mm) and 42˝ (1070 mm) high
  • Maximum of 4˝ (100 mm) space between pickets
  • Maximum of 4˝ (100 mm) between bottom rail and the balcony
Details
  1. Wall adaptor for handrail
  2. Post fastened to top rail
  3. Handrail
    A. 2 ¼˝ (57 mm) rectangular
  4. ½˝ space between glass sections in front of line posts
  5. 90° corners joined by aluminium angle
  6. Adjustable shoe for stiffener
  7. Fastener for face rail
  8. Stiffener post
REFER TO THE CATALOG FOR MORE DETAILS ON THIS PRODUCT
